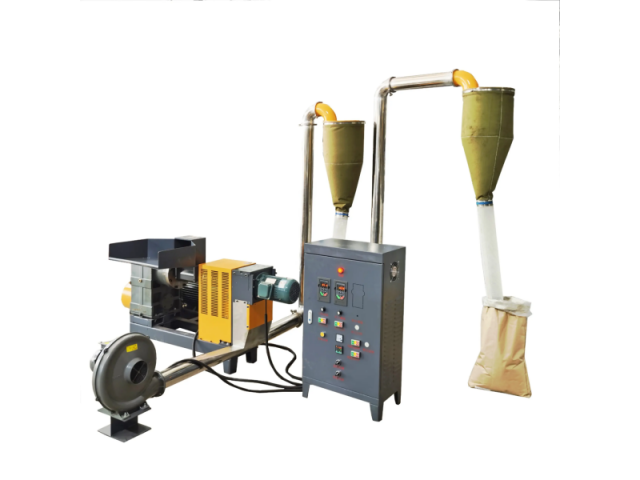

This machine uses waste HDPE and LDPE film as raw materials, extruding and air-cooling/hot-cutting them into granules. The granules are of high quality, free of air holes and moisture. The machine is equipped with a forced feeder, a quick screen changer, and an automatic temperature controller.
|
Model |
SJ-90 |
SJ-100 |
SJ-110 |
SJ-120 |
|
Screw diameter |
F90 |
F100 |
F110 |
F120 |
|
Screw length-to-diameter ratio |
L/D 20:1-22:1 |
L/D 20:1-22:1 |
L/D 20:1-22:1 |
L/D 20:1-22:1 |
|
Screw speed |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
|
Main motor power |
22kw |
30kw |
37kw |
45kw |
|
Output |
68kg/h |
95kg/h |
120kg/h |
135kg/h |
|
Overall machine weight |
2600kg |
2800kg |
3000kg |
3200kg |
|
Land size |
4000×1500×1800mm |
4200×1500×1800mm |
4400×1500×1800mm |
4600×1500×1800mm |
