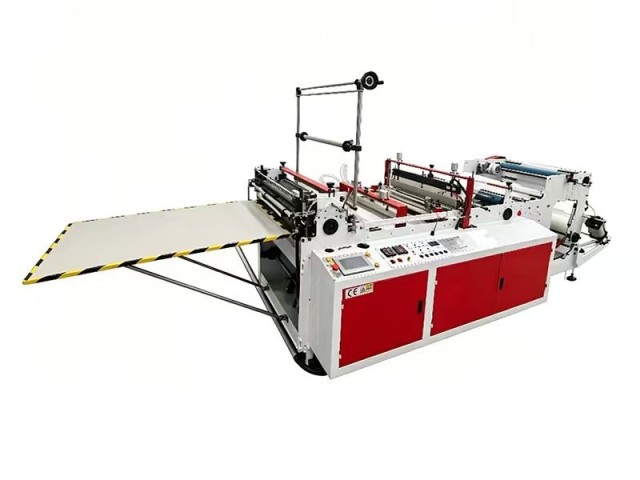

LC-800 Non-stretch Bag Making Machine, LC-800 Non-stretch Bag Making Machine Factory supply-Ruian Liangcai Machinery Co., Ltd

Applications:

Suitable for producing HDPE/LDPE flat bags.

Features:

1. Computerized automatic control, automatic counting, and settable counting alarms; high efficiency, saving manpower and time.

2. Fully automatic one-time completion from roll film to finished bag.

3. Servo motor with fixed length and photoelectric tracking; accurate and stable; photoelectric control for feeding.

4. Employs a heat-sealing and cold-cutting device; intelligent temperature control system ensures a firm and flat bag seal.

5. Uses a frequency converter for speed regulation.

Technical Parameters:

Model	800 model	Electrical Appliances	Wenzhou Zhengtai
Maximum bag-making width	700mm	Computer	Zhongxin
Maximum bag length	3000mm	Color Mark Photoelectric Eye	Longyou
Production speed	20-120 reps/minute	Feeding photoelectric sensor	Longyou
Cut thickness	0.01mm-0.30mm	Temperature Controller	Wenzhou Dechuang
Dimensions (L×W×H)	230015001400	Hot Knife	Copper Knife
Main motor	Shanghai Henglie Motor 1.5kw	Cutting blade	800
Frequency converter	March 1.5kW	Static electricity box	16kv
Feeding motor	DC motor 400W x 1	Static electricity bar	600mm 2 pieces
Main Shipping Fee	Servo motor	Mat device	yes
Then add the material	1 mechanical shaft	Machine exterior casing	Powder coating and baking paint process
Total power of the entire machine	8KW	Voltage	220V/50HZ
